WATER PAVILION

WATER THEMED PUBLIC PAVILION



A SERIES OF CONNECTED RIDGED PODS FORM A PAVILION WITH FLUID PEDESTRIAN CIRCULATION ON THE GROUND AND LOWER PLANES



VIEWING TERRACE OVERLOOKS STATEN ISLAND FERRY TERMINAL AND UPPER BAY; ACCESSIBLE ONLY FROM UNDERGROUND ENTRY



UNDERGROUND PUBLICLY ACCESSIBLE BUT WITH OPTIONAL PRIVATE PROGRAM: BATHROOM, ADDITIONAL SEATING, BAR LOCATED ON UPPER FLOOR REACHABLE FROM UNDERGROUND SPIRAL STAIR



RIDGED LOOSELY CONNECTED MEMBERS CARRY WATER TO UNDERGROUND FILTER SYSTEM; WATER IS REUSED AS MISTING STATIONS: COOL IN SUMMER / WARM IN WINTER; THIS PROCESS ALSO WATERS THE MOSS;O2 FROM MOSS HELPS AERATE UNDERGROUND AREAS; IT ALSO SOFTENS AND WARMS A TYPICALLY HARD AND COLD OUTDOOR [CONCRETE/METROPOLITAN] SPACE DEVOID OF ACCESS TO EXTENSIVE VEGETATION



POROUS WALLS/FLOORS/CEILINGS COLLECT AND DIRECT WATER TO A CENTRAL CORE; A FEW SOLAR KEENLY PLACED PANELS POWER THE MODEST HEATER AND PUMP; THIS WATER IS RECYCLED AND REDISTRIBUTED AS STEAM; THIS SOLVES THE PROBLEM OF HEAVY LIFTING, SANITATION, AND TEMPERATURE; THE FINS THEMSELVES ARE HOLLOW THIN ALUMINUM;

ESSENTIALLY - WATER COMES DOWN THE OUTSIDE AND UP THE INSIDES











press to zoom

AERIAL RENDER FACING NE FROM SW CORNER

press to zoom

LAYERED RIDGES COLLECT AND DIRECT WATER AS IT FALLS

press to zoom

WATER COLLECTION SECTION; RIDGED LAYERED FINS, BOTTOM CONCRETE POOL WITH VAPOR PANEL DECKING COMPONENT, CENTRAL DRAINS

press to zoom

DIAGRAMMATIC UNDERGROUND PLAN

press to zoom

INTERIOR MISTING PODS FROM NE ENTRY

press to zoom

TOPOLOGY ETABLISHED WITHIN THE DESIGN OF AN ORIGINAL BUILDING UNIT RIDGES PINCH 'HOOK' FLAT VS CUPPED

press to zoom

TOPOLOGICALLY CAN BE FLATTENED BENT PUSHED STRETCHED ETC CAN BE USED TO CREATE A STRUCTURE THAT IS COMPOSED OF MULTIPLE ELEMENTS ACTING AS A SINGLE POROUS 'SURFACE' THIS POROSITY ALLOWS FOR THE CONTROL OF WATER

press to zoom
press to zoom
press to zoom

HOOK

press to zoom

POD AND RIDGE UNIT TYPOLOGY LANGUAGE APPLIED TO SITE

press to zoom

LAYERED RIDGED FINS MAINTAIN WATER TRANSFERRING PROPERTIES WITH HIGHLY OBTUSE TO RELATIVELY ACUTE CURVATURES; AN INFINITE VARIETY OF FUNCTIONAL SURFACES AND ENCLOSURES CAN BE FORMED WITHOUT LOSING THIS PROPERTY

press to zoom

INVERTED RIDGES FOR AREAS WHERE DEFLECTION OF WATER IS DESIRED

press to zoom

STRUCTURAL CANOPY STUDY USING PASTA PIECES; THE 'MANTIS' PASTA AS TOPOLOGY PRECEDENT - DESIGNS VARY IN ABILITY TO HOLD/DISTRIBUTE SAUCE

press to zoom

MANTIS STRUCTURE ELEVATIONAL

press to zoom

SHELTER PODS AND SHADER

press to zoom

UNDERGROUND PODS FACING NW; MOSS AND MISTING STATIONS; POROUS FLOOR

press to zoom

SITE CROSS SECTION

press to zoom

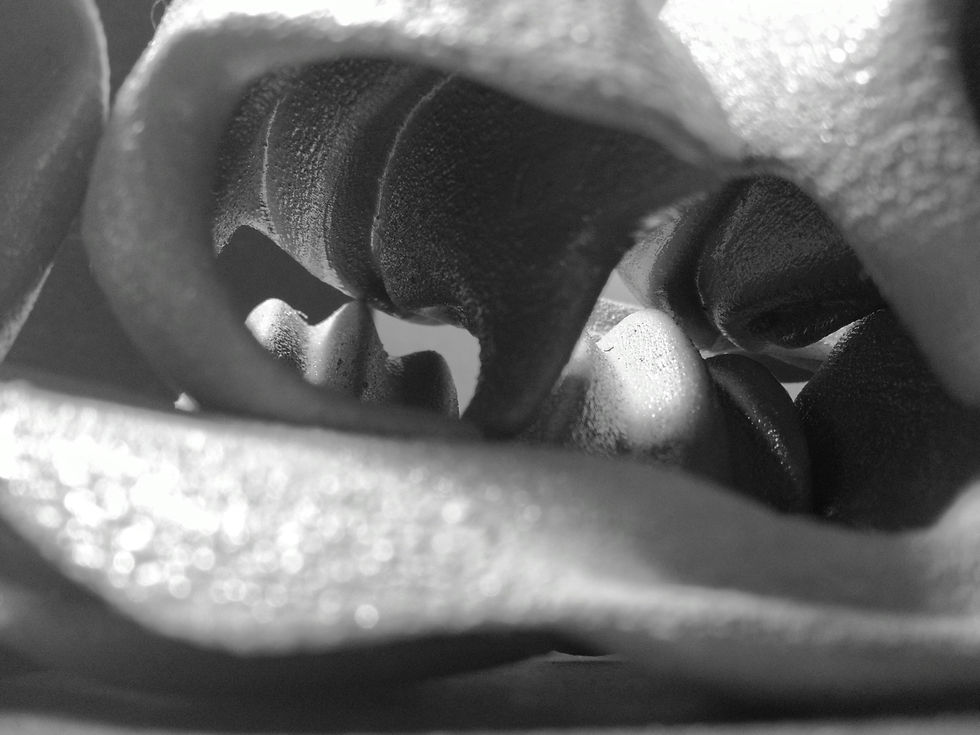

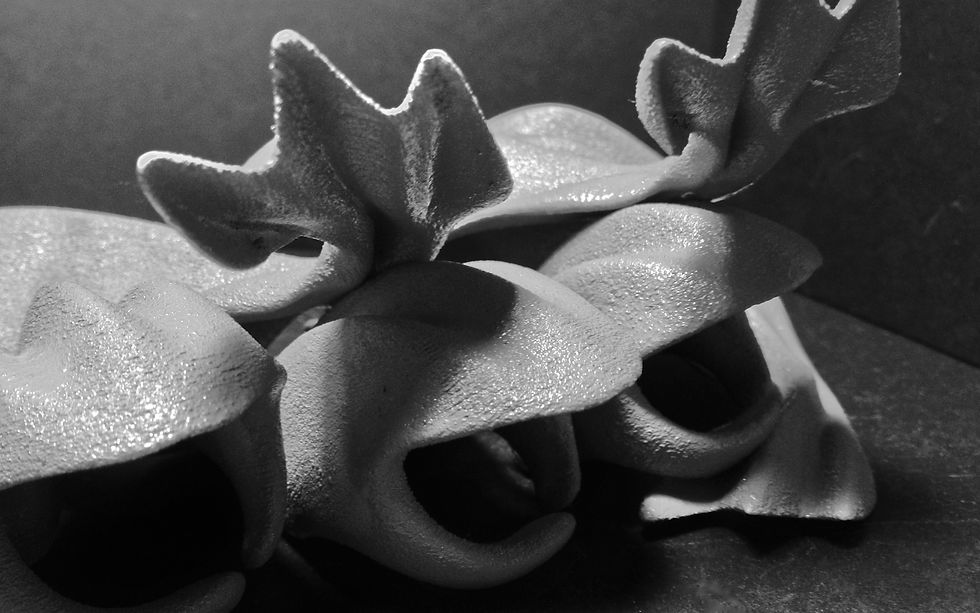

INTERLOCKING UNITS - REQUIRE NO ADHESIVE WITH STRUCTURAL FORMATIONS POSSIBLE IN COMBINATIONS OF 3 OR MORE

press to zoom

TRANSVERSE SITE SECTION SHOWING 'BATHTUB' BOTTOM MOST LAYER BELOW RIDGED FIN SYSTEM; 6' TALL RECTANGLE FOR SCALE REFERENCE
